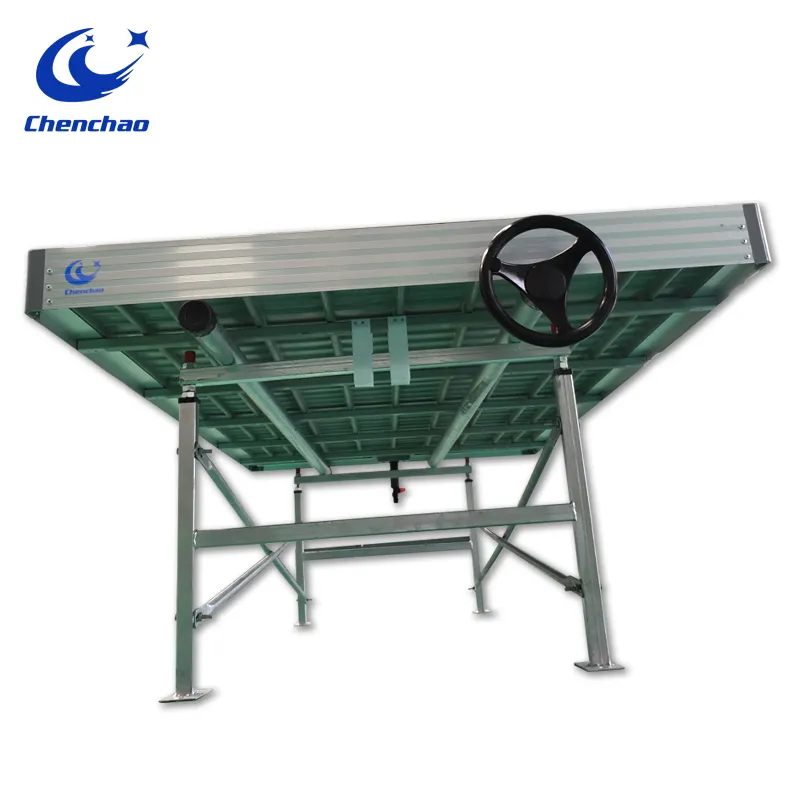

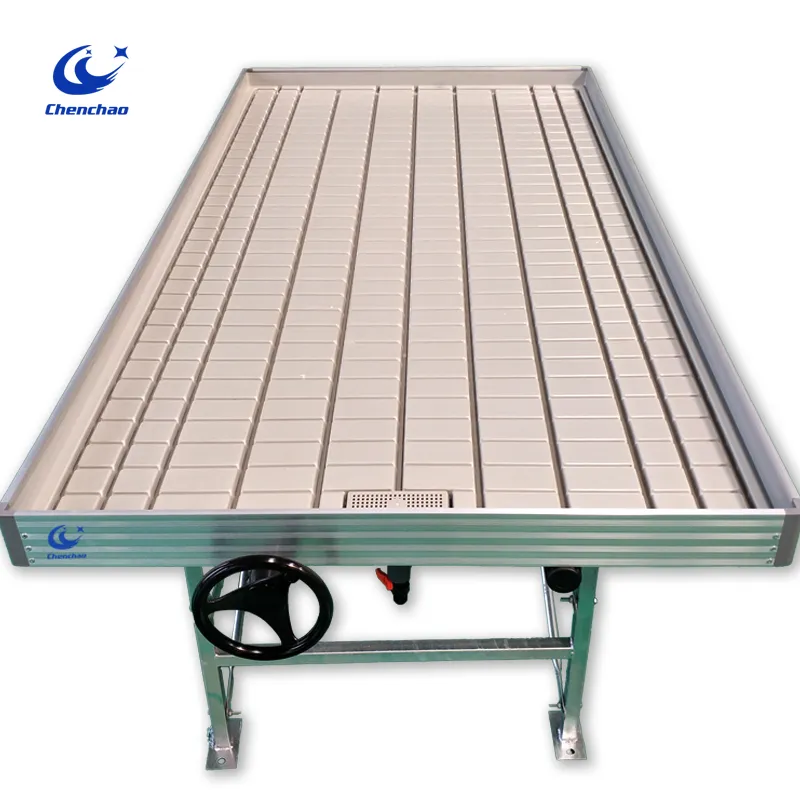

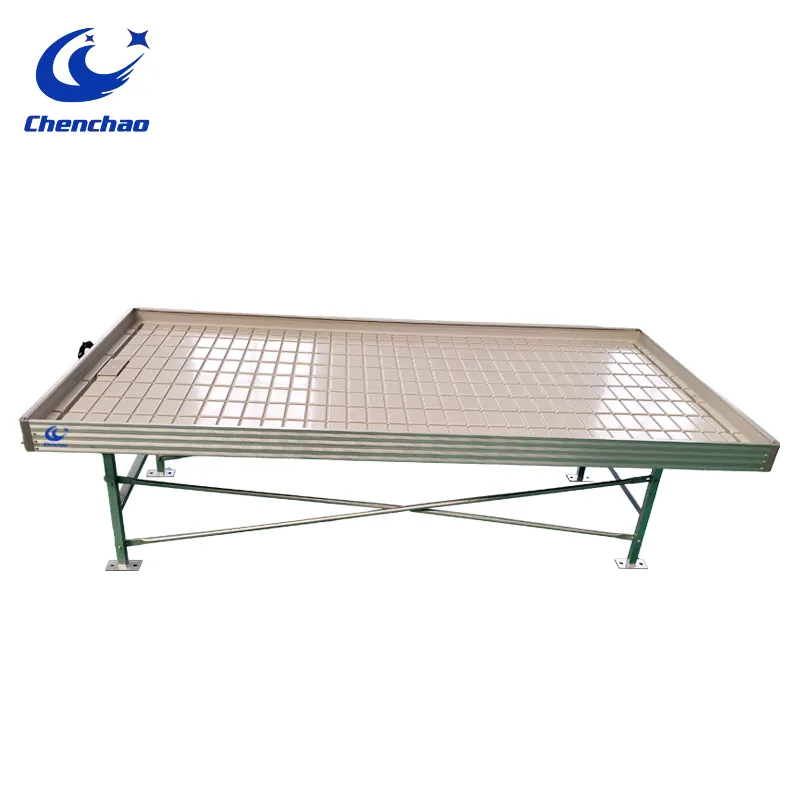

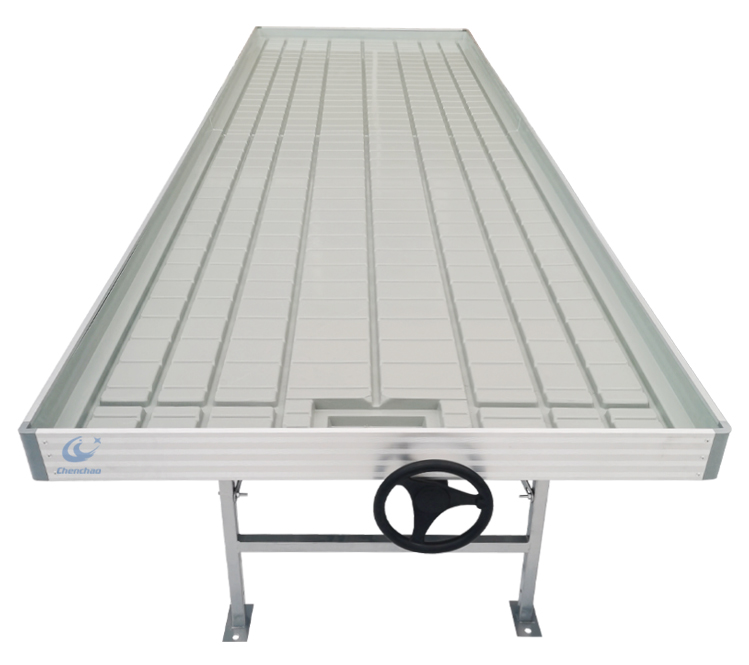

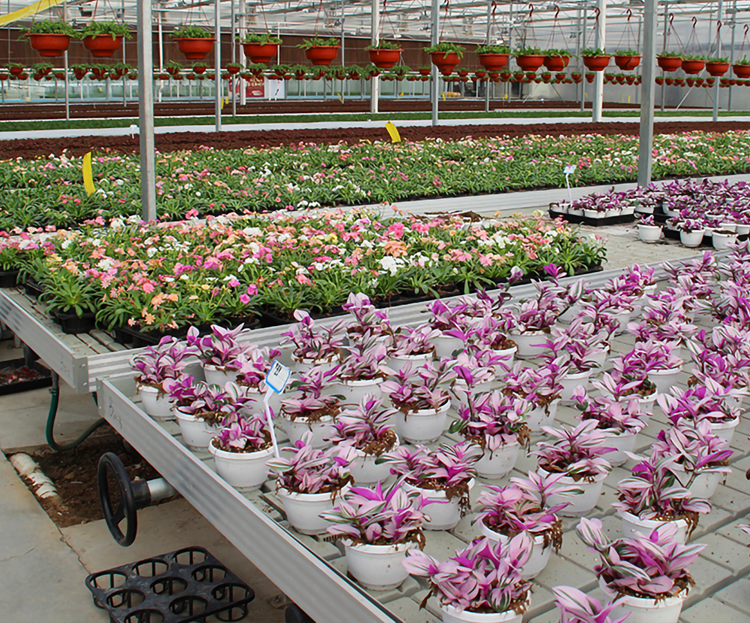

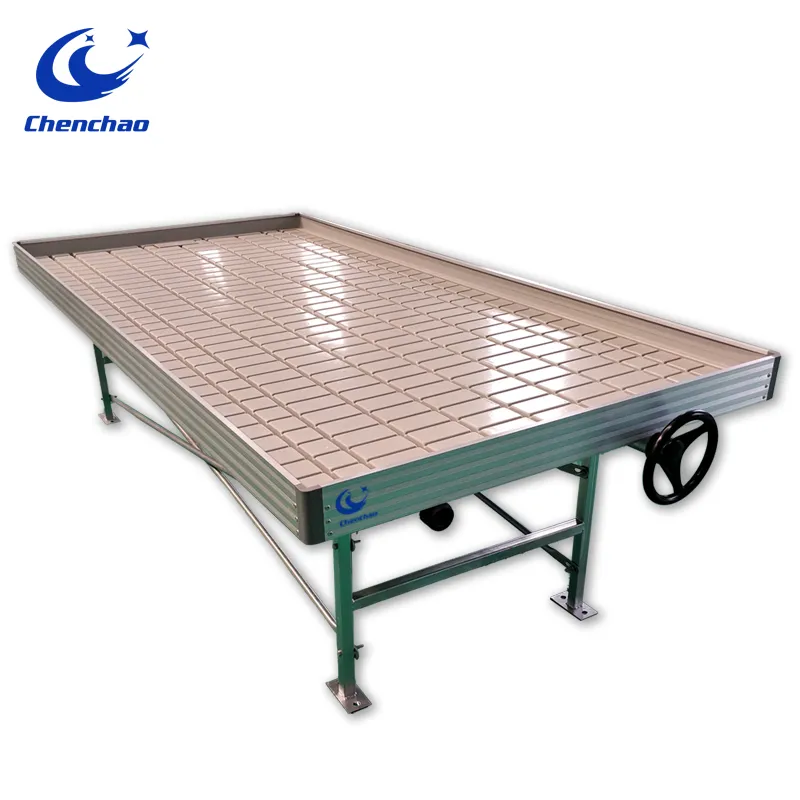

Mobile tidal Seedbed is a special seedbed system designed to allow water to enter from the bottom of the seedbed. During irrigation, a Water fertilizer integrated machine can be used to fill the panel with clean water or nutrient solution and allow it to remain for a certain period of time, so that crops can absorb waterthrough the drainage holes at the bottom of the flowerpot by capillary action. Afterwards, the irrigation wateris discharged from the cultivation bed, collected and reused, or directly discharged into the local sewer system. Reduce water waste, protect crop growth, and keep floors dry.

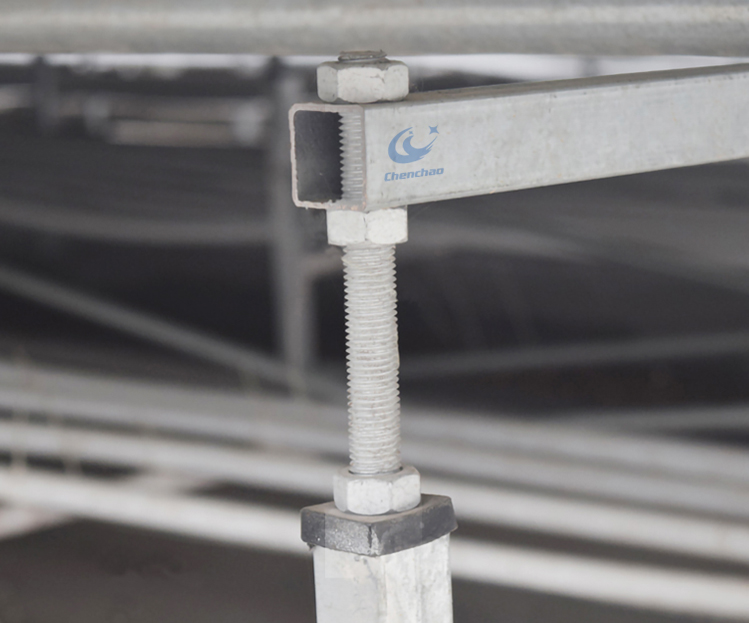

1.The height of the seedbed can be adjusted: the hot-dip galvanized bracket and nut adjust the height for more precise adjustment.

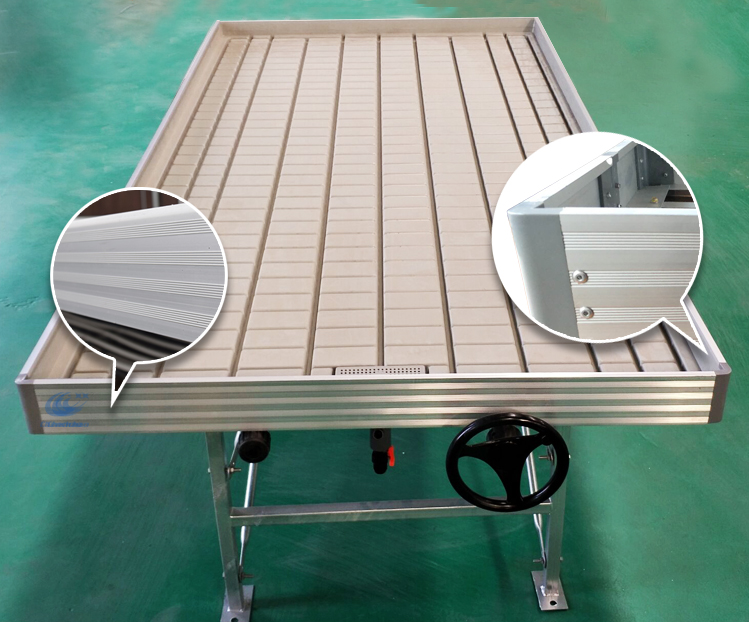

2.Aluminum alloy edging design: completely wraps the Tidal seedbed into one, with reinforced patterns on the side for greater stability, and a double-layer aluminum alloy frame for easy support of the pulley car on top of the frame in the future.

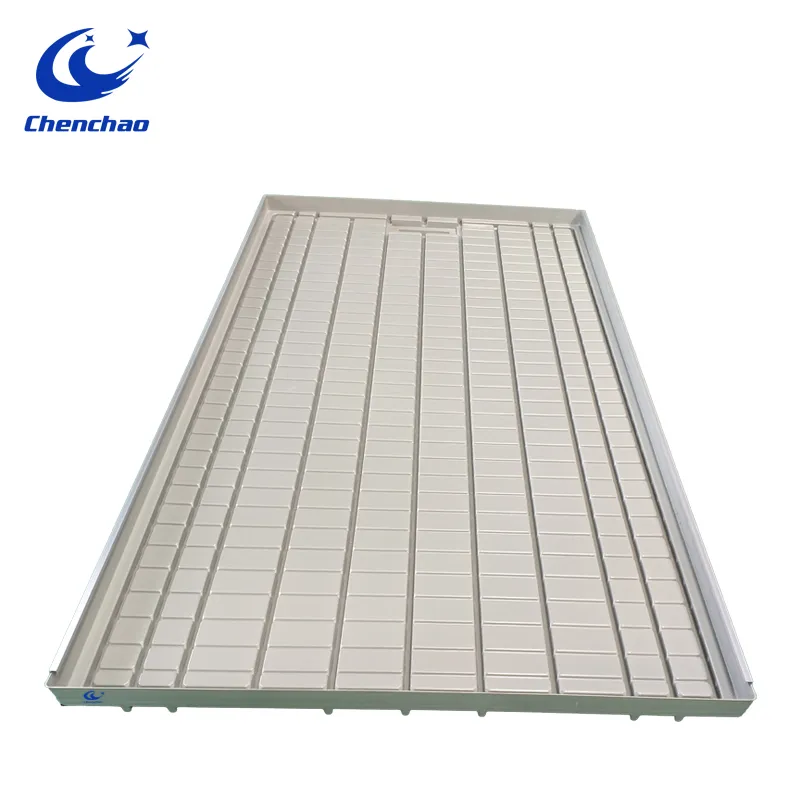

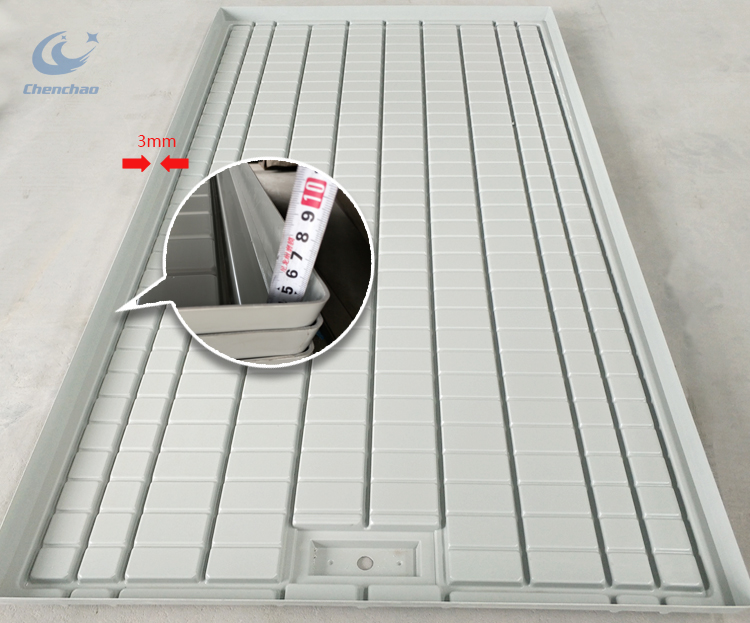

3.HIGH Durability,High Cold Resistance,High Pressure Resistance: Tidal panels are made from high temperature blistering using flat, food-grade ABS plastic (through molds) with a thickness of 3mm.

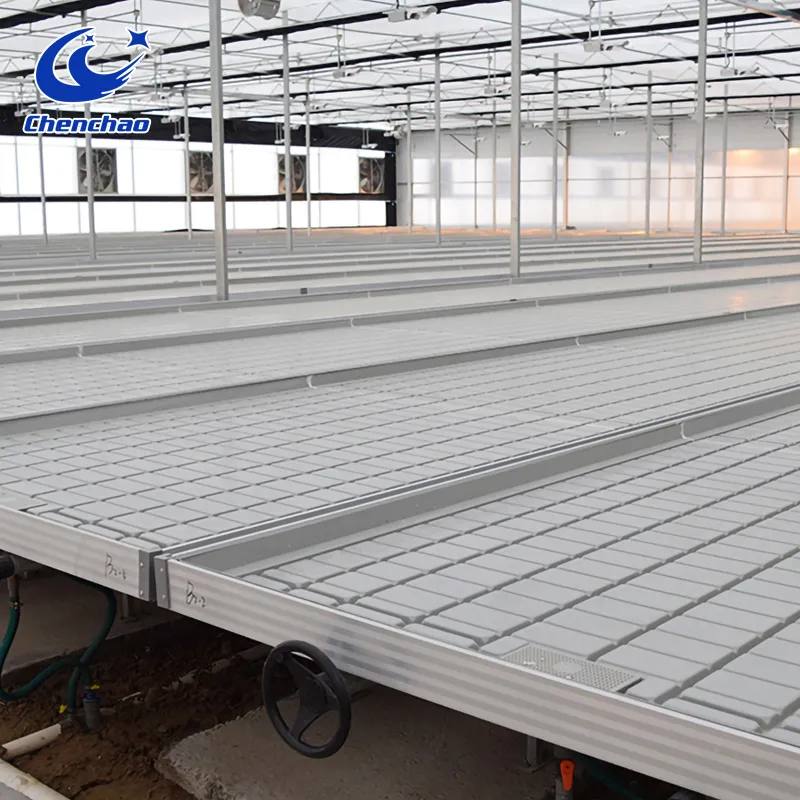

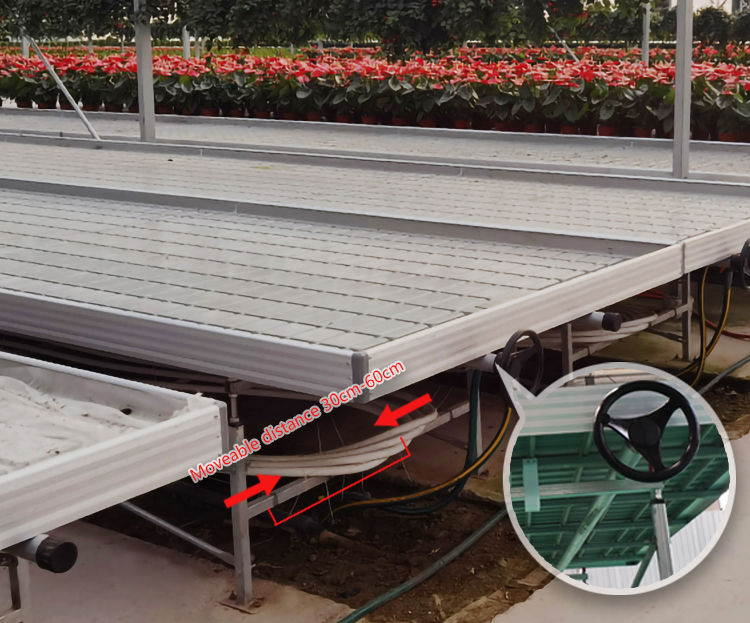

4.Space utilization:The movable roller design improves the utilization of Greenhouse space.
5.Tide panels come in a wide range of sizes and specifications: We have multiple models of molds available, which can be extended and widened while maintaining stability. We use stable triangular model beams, which are both durable and stable.
6.Water and energy conservation: By implementing a water cycle system and precise management, water usage and energy consumption are significantly reduced.

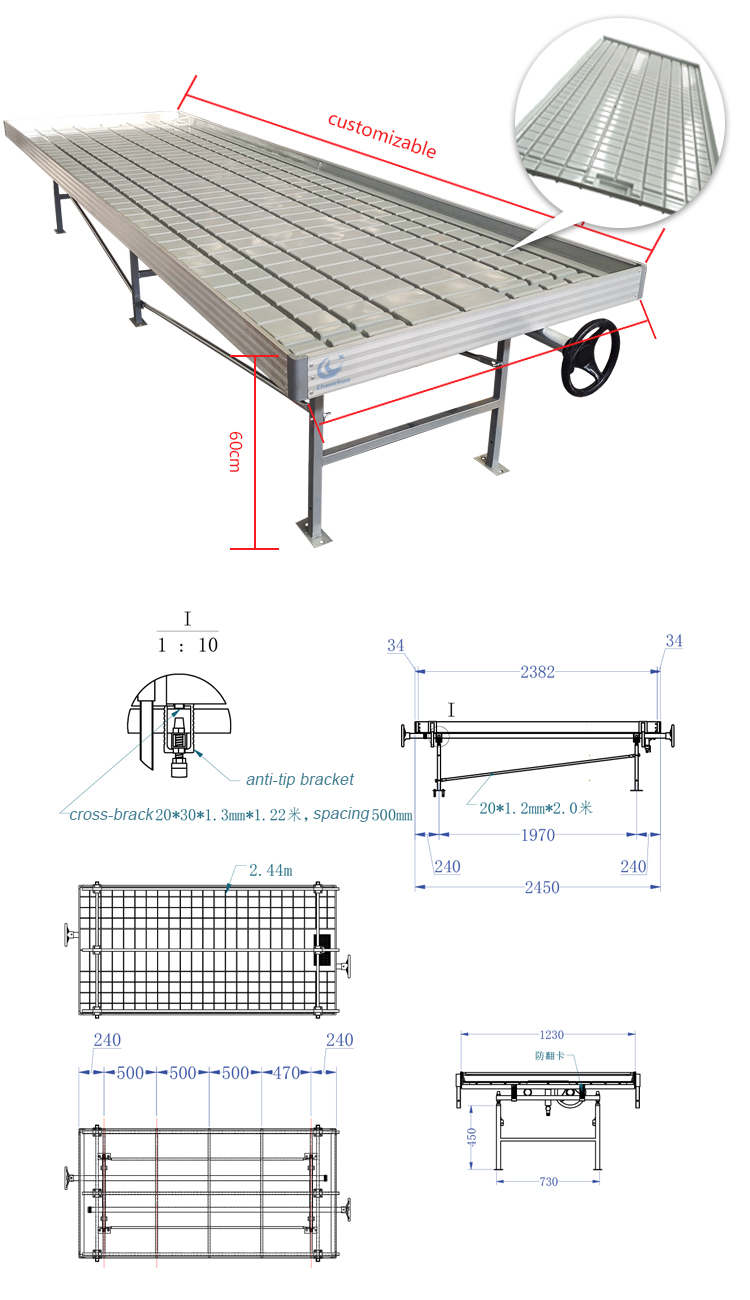

Name | Mobile tidal seedbed |
Common sizes | 1.22 * 2.44m (4 * 8 feet) 0.61 * 1.22m (2 * 4 feet) 1.22*1.22m (4 * 4 feet) 1.53*3.4m (5 * 11 feet) 1.53*4.5m (5 * 14 feet) 1.7*4.45m(5.6 * 14 feet) |
Splicing size | 1.22 * 2.14m (4 * 7 feet) 0.91 * 2.14m (3 * 7 feet) 1.53 * 2.14m (5 * 7 feet) 1.69 * 2.14m (5.6 * 7 feet) 1.78*2.14m(5.8 * 7 feet) |
Customized | We accept customized sizes, colors, and any type of tray and table |
Material | ABS tray, aluminum alloy frame, hot-dip galvanized support legs |
Workbench height | The standard is 60 centimeters (adjustable 8-10 centimeters), and other heights can be customized |
Colour | Grey or customized |
Moving distance | Move 25-30 centimeters (on each side) |
Load range | 45-50kg/m2 or formulated |
UV protection | yes |

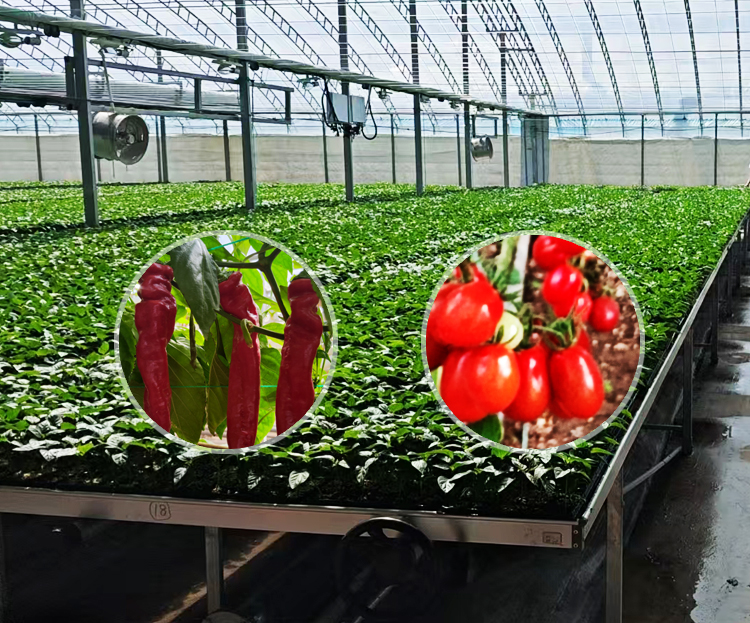

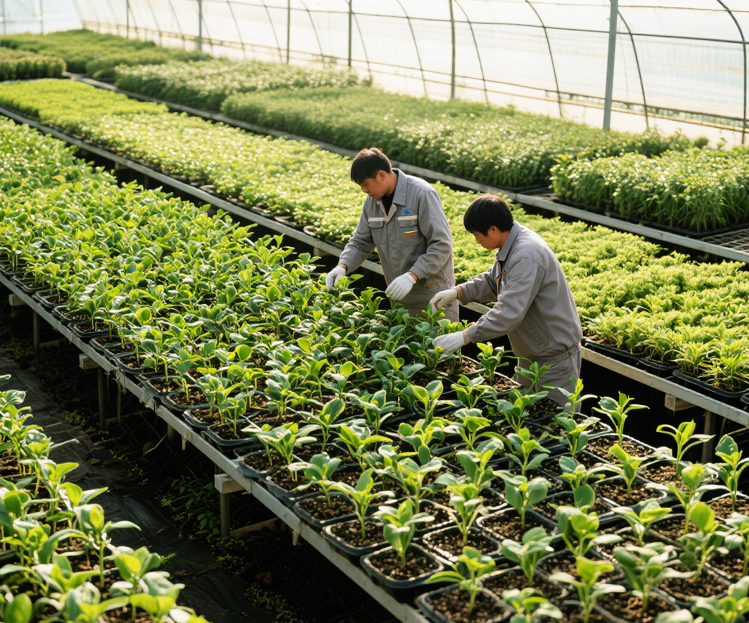

Application scope: Widely used for seedling cultivation of vegetables, flowers, seedlings and other crops, as well as standardized plant factory production, scientific research and experimental platforms, ecological restoration projects, three-dimensional greening projects, horticultural flower cultivation, economic crop cultivation, medicinal plant cultivation, landscape plant propagation, and modern agricultural facilities.

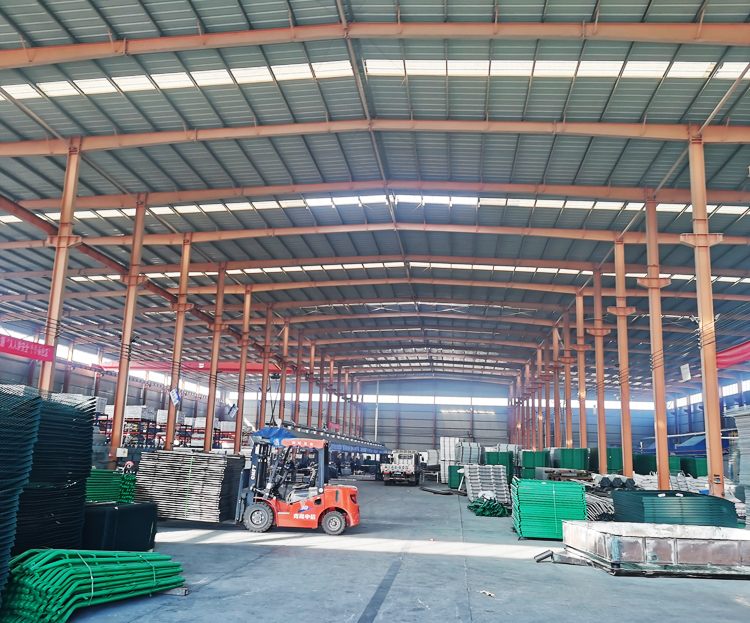

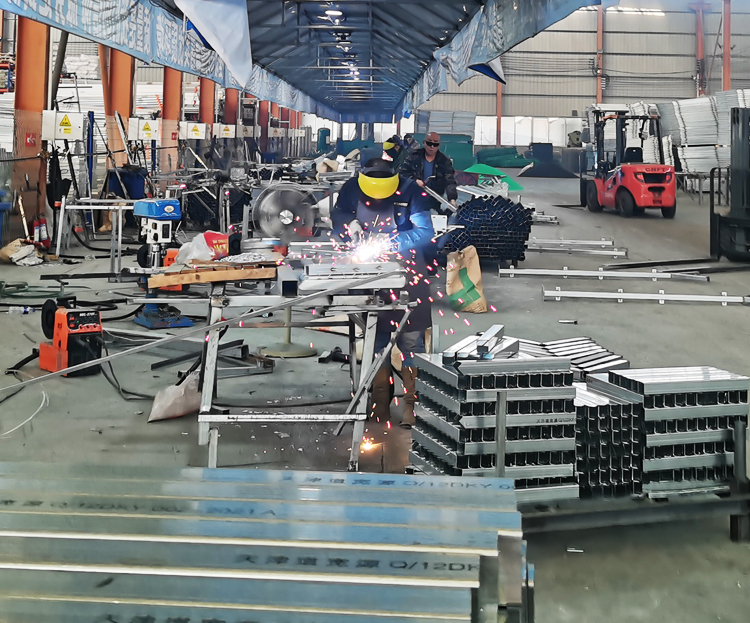

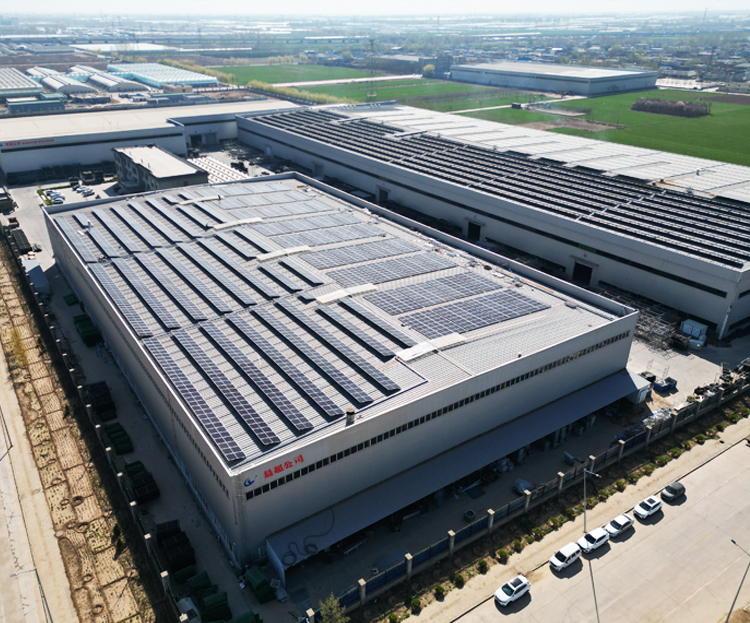

Hebei Chenchao company was founded in 2011, is located in Raoyang County,Hengshui City, Hebei Province, since the creation of the company, is committed to the greenhouse agricultural nursery, planting, product and equipment research and development, base teaching and other overall program output. Our factory has its own tidal plate production equipment, a large number of stocks all year round, is the greenhouse company and customers preferred quality suppliers, the company currently has nearly hundred professionals, of which the branch offices all over the north and south of the Yangtze River, the listed product quality is excellent, the overall supporting program of professionalism, high commercial value, implementability, at present, Chenchao company can undertake OEM / ODM agricultural facilities products and greenhouse construction of the At present, Chenchao can undertake OEM/ODM agricultural facilities products and greenhouse construction of the overall program orders, the comprehensive level of industry-leading.
With a strong R&D team and strong company capabilities, our company has obtained multiple institutional and patent certifications.
We sincerely invite people from all over the world to visit and guide our factory. We can provide customers with a complete set of solutions from design to "turnkey" direct use.

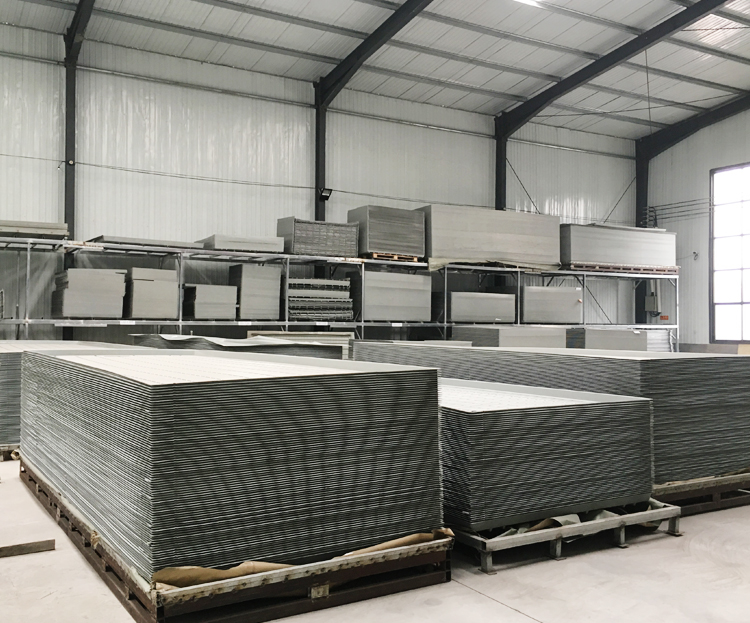

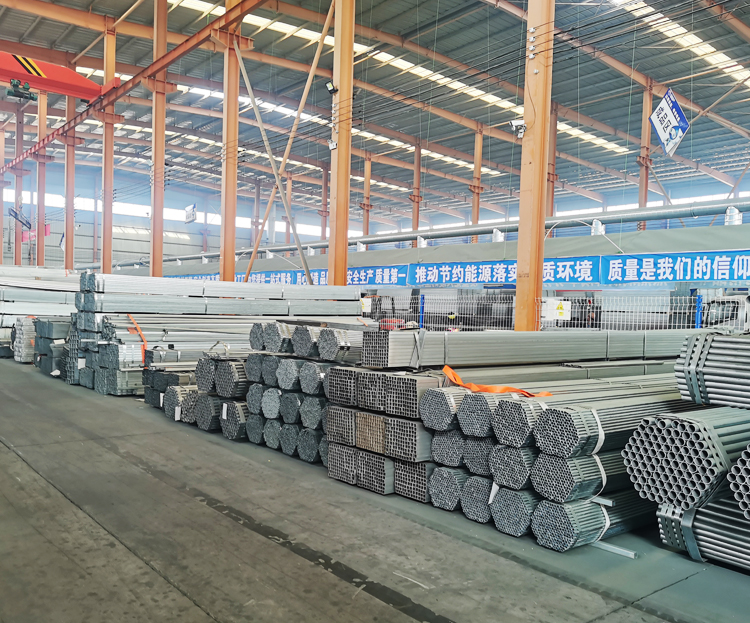

We rely on our strong production capacity and sufficient inventory of goods to ensure efficient transportation capabilities. To ensure that your goods are delivered as soon as possible, we offer various transportation methods such as air freight, sea freight, and railway transportation for you to choose from.
Q1: Are you a factory or manufacturer?
We are a Chinese origin factory and can accept orders of any model or specification.
Q2: What is the after-sales warranty policy for the product?
For products shipped from our factory that are not damaged due to human factors, they can be exchanged within 3 months and returned within 6 months. If the problem is not resolved within 1 year, we will provide corresponding compensation to the customer.
Q3: What is the minimum order quantity for the factory?
Accessories are generally available in full containers or starting from 10 cubic meters, and customized products should not be less than the volume of a standard 20/40/45 foot container.
Q4: How long is our production leading time?
Within 30days upon receive deposit in normal season, and around 40 days in our busy time . (Also Depends on the number of products and the complexity of the process.)
Q5: Where is your factory located? Can we do customized design?
Our factory is located in Raoyang High tech Development Zone, Hengshui, China. We provide OEM and ODM services, and you can show us your design drawings and solution content.
Q6: Transportation mode?
A:Loading Port: Mainly loaded at Tianjin Port in China or Qingdao Port in Shandong Province
B:Transportation service: sea freight. Due to the heavy weight and irregular size of the finished product packaging, it is not possible to deliver the furniture to your location by air freight/express delivery. Sea freight is the only delivery method.
Q7: What can I do if the item damaged during transportation?
Our customer service staffs will help you with any questions or concerns. Under any circumstance, we will take well packed products pictures before shipping. So if any damage on products,please take pictures for us.
Q8:Why did I choose your Chenchao company?
There are three advantages to choosing to cooperate with us: 1. Chenchao Company has a strong research team, which can better facilitate the complete implementation of the project; 2. Chenchao Company has strong production and warehousing capabilities and accepts customized products of any specification; 3. Chenchao Company has a better reputation and after-sales service, with successful experience and numerous solutions in delivery, pre-sales support, drawing design, greenhouse soil, and park operation.
Q9:Does the company accept cash on delivery and letter of credit transactions?
At present, the company only accepts two methods of settlement: factory delivery settlement and domestic port settlement.
Q10:What products and services does your company offer?
Our factory has been committed to the research and implementation of integrated products for greenhouse agriculture, including Greenhouse fences, seedbeds, Seedling trays, planting troughs, picking trucks, energy-saving irrigation systems, planting lamps, integrated water and fertilizer machines and other agricultural facilities. We also provide intelligent agricultural integrated solutions that combine modern and efficient greenhouse planting, ensuring high economic means such as stable production, pest resistance, energy conservation, and controllability.
